| 100-1000 Series | 200-2000 Series | 300 - 3000 series | 4000 series | 5000 series |
| Single
& Multi curved Alumina S2 aramid plates |
Single
& Multi Curved Alumina aramid plates |
Single
& Multi Curved UHMWPE like Spectra with& Alumina |
Multi
Curved SiC plates |
Multi
Curved B4C plates |
| BAS | BAS | MPS | MPS | MPS |
------------------------------------------------------------------------->
Increased Protection/Weight ratio
------------------------------------------------------------------------->
Low
price
Increased Price and
performance
Download Product datasheet Rifle plates:Please inform about Retail and Whole Sale Prices: click for Rifle plate datasheet

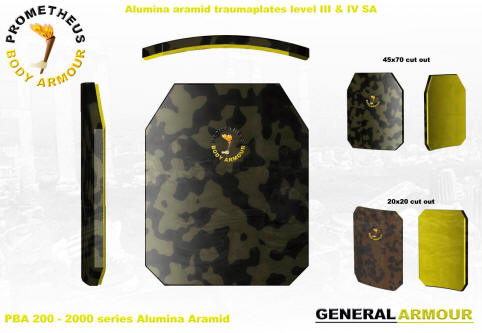

200 - 2000 SERIES
(Level III, III+ and IV)
S2 glass or Aramid Ceramic multi curved plates
| Protection level | Sizes |
Weight (based on 10x12") |
|
| 100 series | 200 series | ||
| III | 5 x 8 " (
~ 125 x 205 mm) 8 x 10 " ( ~ 205 x 250 mm) 10 x 12 " ( ~ 250 x 305 mm) |
~ 2.7 kg ICV ~ 3.0 kg SA |
~ 2.5 kg ICV ~ 2.8 kg SA |
| IV | 5 x 8
" ( ~ 125 x 205 mm) 8 x 10 " ( ~ 205 x 250 mm) 10 x 12 " ( ~ 250 x 305 mm) |
~ 3.0 kg ICV ~ 3.3 kg SA |
~ 2.8 kg ICV ~ 3.1 kg SA |
